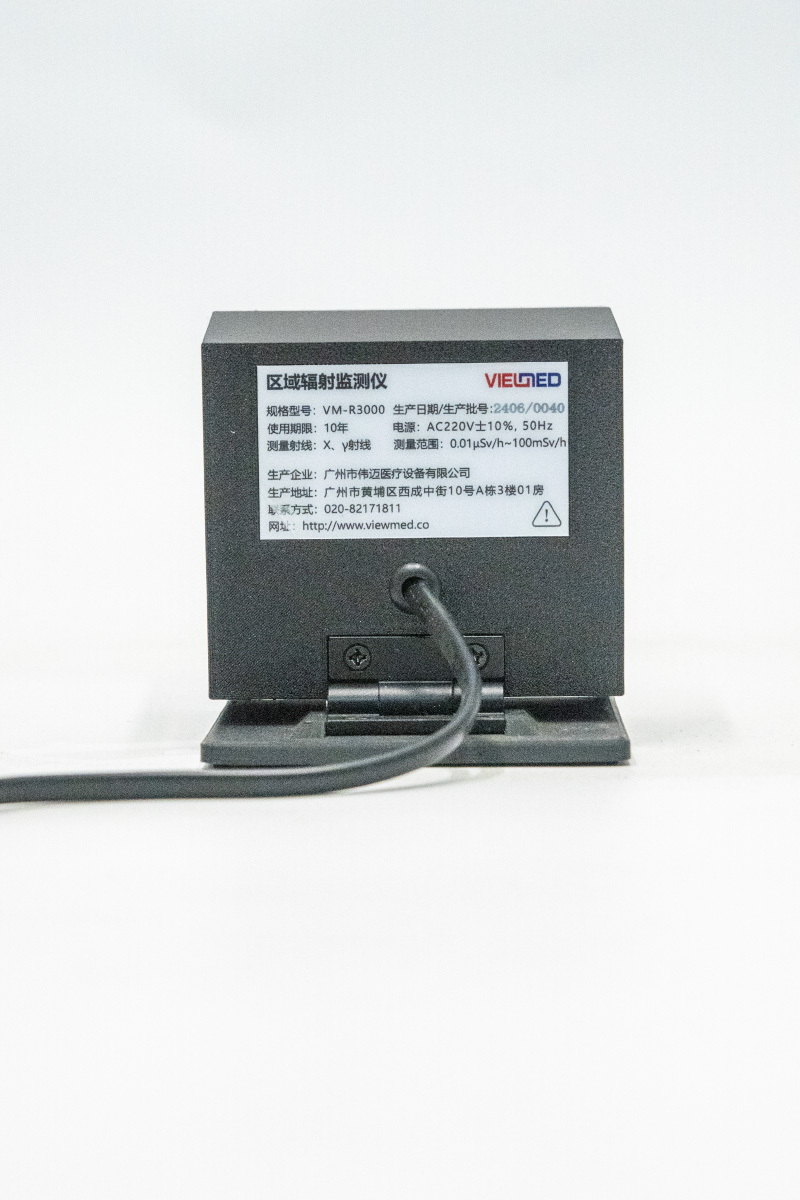

Room Radiation Dose Monitor

The VM-R3000 Room Radiation Monitor is specifically designed for radiation-risk environments, serving as the core communication hub of safety monitoring systems. It performs real-time radiation level monitoring, dose rate measurement, and alarm functions, responsible for data acquisition, storage, transmission, and query. When abnormal radiation levels are detected, the monitor triggers immediate alarms to ensure personnel safety.

Key Features:

• Standard 86-type panel with 4.0" touchscreen, suitable for desktop use or wall-mounted installation in 86-type junction boxes
• 6 language interface options
• Adjustable screen brightness

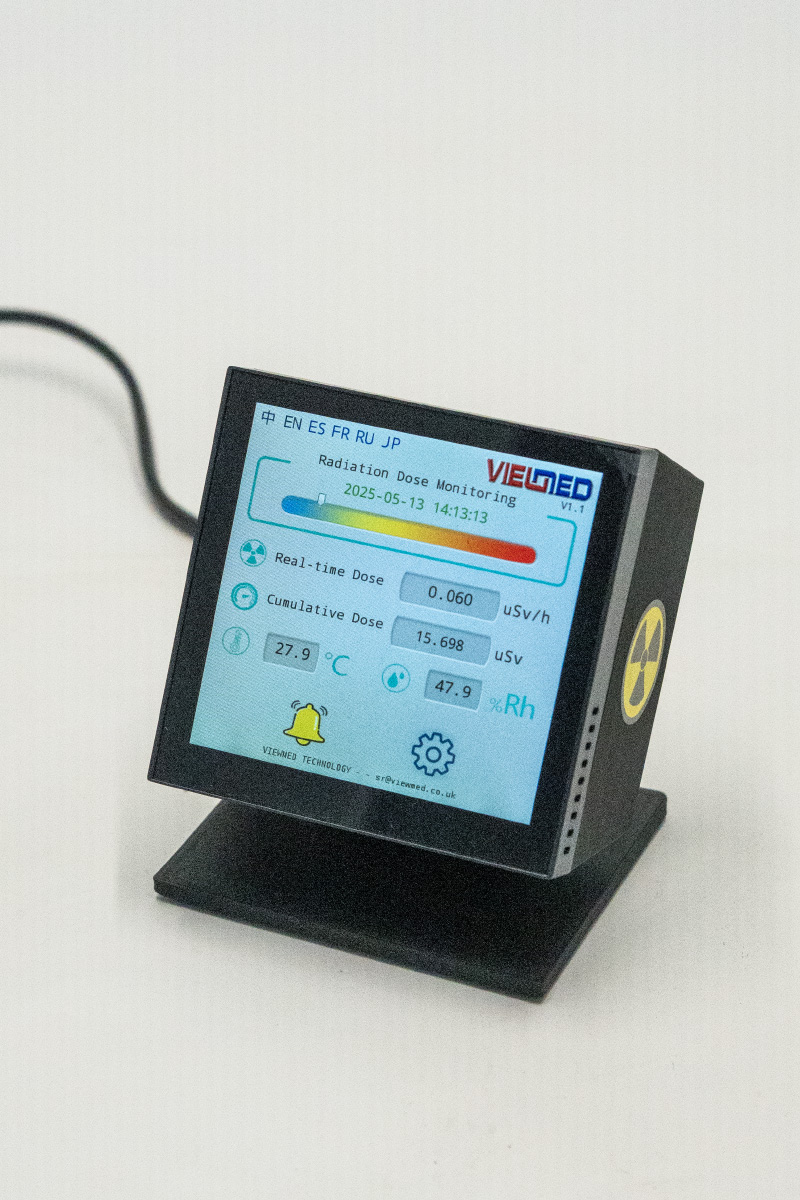

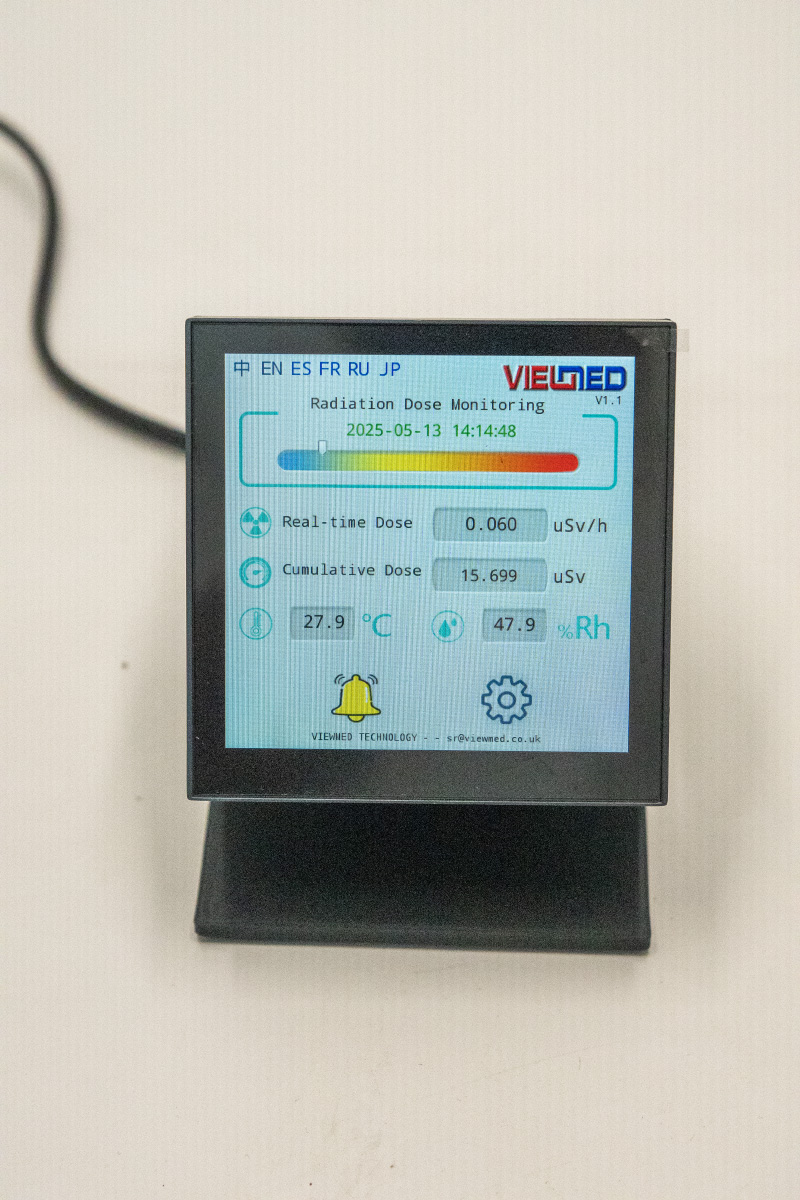

• Multi-parameter monitoring:
  • Instantaneous radiation dose
  • Cumulative dose
  • Temperature & humidity
  • PM2.5 (optional)

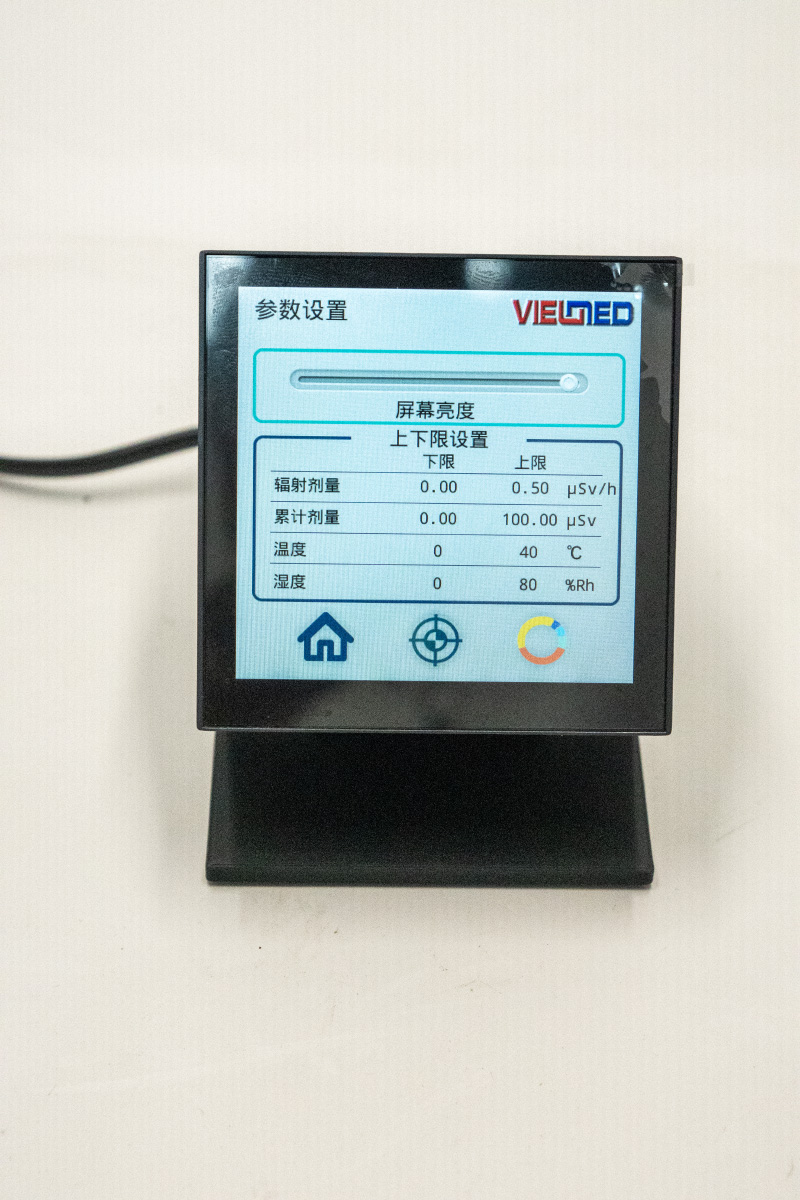

• Customizable upper/lower alarm thresholds

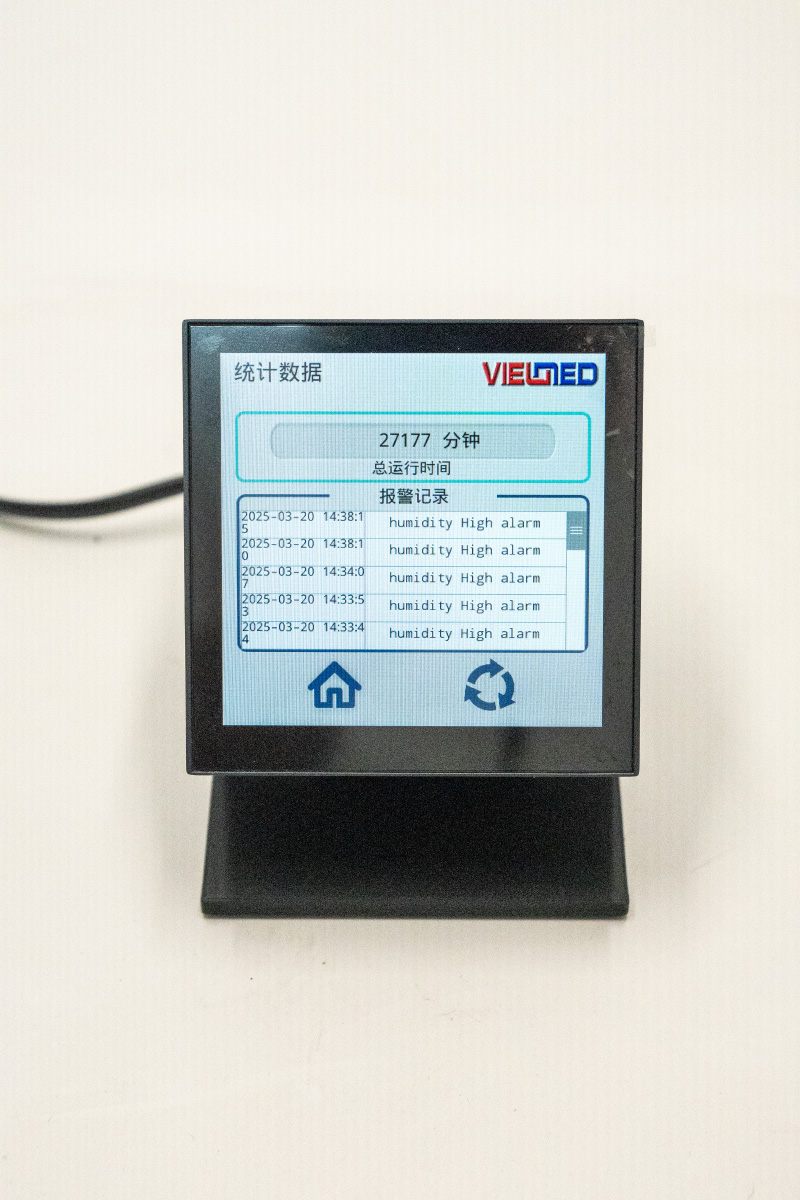

• Operational statistics:
  • Total runtime
  • Alarm history records
• Built-in calibration compensation
• Data reset capability

Technical Specifications:

1. Operating Conditions

• Power Supply: AC 220V ±10%, 50Hz
• Operating Environment:
  • Temperature: 0 to +40℃
  • Humidity: ≤80% RH
• Storage Conditions:
  • Temperature: -20 to +60℃
  • Humidity: ≤80% RH

2. Device Specifications
